3KC4346-0EA21-0AA3 MOOTORAJAMIGA ÜMBERLÜLITI 3P Iu: 630A KÄEPIDE POLTÜHENDUS
Toote informatsioon

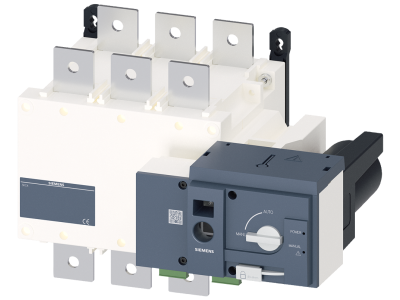

SENTRON, transfer switching equipment 3KC, remotely operated, RTSE, 3-pole, Iu: 630 A, Ue AC: 415 V, Ie at AC-33 B at 415 V: 400 A, Ie at AC-23 A at 690 V: 400 A, screw mounting, motorized operating mechanism, at the right end, long handle, busbar connection 3KC transfer switching equipment up to 3200 A for permanent power supply. 3KC transfer switching equipment 3KC from SIEMENS stands for high performance, easy installation and reliable operation. In the portfolio, you will find manually operated MTSE, remotely operated RTSE and automatic ATSE transfer switching equipment in a variety of designs for a wide range of switching tasks. 3KC transfer switching equipment is used in power supply networks to transfer loads between a normal and an alternative source. Switching between two loads is also possible. 1. Short switching times for ASTE and RTSE (up to 160 A < 180 ms). 2. Can be used flexibly thanks to a compact design and wide range of accessories. 3. Improved safety during maintenance works thanks to padlock locking. 4. Quick installation on the standard mounting rail with frame sizes up to 160 A. 5. Efficient engineering with extensive CAx data. 6. Simple documentation with the manual configurator. 7. Ideal for a continuous power supply (UPS) e.g. in computer rooms, production lines in continuous operation or large infrastructure such as airports (RTSE and ATSE variants). www.siemens.com/switching-devices. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.
- Link tootja lehele
Lahklüliti
- Maksimaalne nimitööpinge Ue AC 415 V
- Tunnustalitluspinge 166.0 - 332.0 V
- Nominaalne püsivool Iu 630 A
- Tunnus-pidevvool talitlusel AC-21. 400 V 630 A
- Pooluste arv 3
- Ümberlülituskontaktidest abikontaktide hulk 4
- Seadme ehitus Sisseehitatud seadme fikseeritud sisseehitamise tehnika
- Juhtelemendi värvus Must
- Juhtelemendi liik Pikk pöörlev käepide
- Peavooluahela ühenduse tüüp Lati ühendus
- Kaitseaste (IP). esikülg IP00
- Kaitseaste (NEMA) Muul viisil
