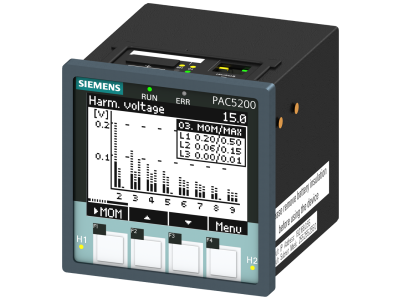

7KM5412-6BA00-1EA2 VÕRGUANALÜSAATOR VÕRGU KVALITEEDI SALVESTI PAC5200 LCD L-L: 690 V L-N: 400 V 10A Us=110 … 230 VAC 24 … 250 VDC

SENTRON, meas. device & power quality recorder, 7KM PAC5200, LCD, L-L: 690 V, L-N: 400 V, 10 A, 3-phase, Modbus TCP, apparent/active/reactive energy / cos phi, harmonics: 2.-40., THD, class 0.5 acc. to IEC61557-12 or cl. 0.5S acc. to IEC62053-22, wide-range pwr sup. unit AC/DC, screw terminals The 7KM PAC measuring devices are the ideal basis for recording energy values. The 7KM PAC measuring devices enable precise, reproducible and reliable measurement of energy values for infeed, outgoing feeders or individual loads. They not only provide comprehensive information about your electrical installations and power distribution, but also key measured values for assessing the system state and quality of the power supply. For further processing of the measured data, the devices are equipped with a wide range of communication options for easy integration in higher-level automation and energy management systems. The 7KM PAC5200 measuring device records and analyzes measured values according to Power Quality-Standard EN 50160. Key features of the Siemens 7KM PAC5200 measuring devices: 1. Flexibility with two device versions for mounting onto standard rail (without display) and front mounting. 2. Easy operation via the integrated Web server for parameterizing all devices and communication parameters, as well as online view and evaluation of measured values. 3. Standard-compliant data acquisition and generation of reports (IEC 61000-4-30 Class S*, IEC 61000-4-15 Flicker, IEC 61000-4-7 Harmonic, reporting in accordance with EN 50160). 4. Integrated recorder with 2 GB internal memory for flexible recording (measured value recorder, recorder for power quality deviations, curve plotter, event logger). 5. Individual choice of display for power quality reports, for example EN50160, ITIC(CBEMA), events or online view directly in the Web server, waveforms with COMTRADE viewer. 6. Data export in the formats PQDif (Power Quality Data), COMTRADE (event logger) and CSV
