7KT1222 KOMPLEKT PAC1200 18 2x 9 VOOLUTRAFO LATT 18 VOOLUTRAFOT 40A 1x ANDMESERVER

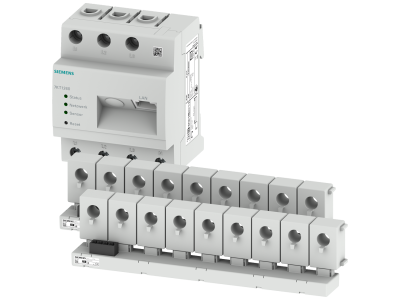

Starter kit 18 2x 9 sensor bars incl. 18 and 1x data manager The 7KT PAC measuring devices are the ideal basis for recording energy values. The 7KT PAC1200 multi-channel current measuring system is a cost-effective solution for a more transparent display of energy consumption and the costs incurred. With the 7KT PAC1200 you can determine which output is currently needed in any branch of the circuit, without high installation costs. Recording takes place by means of ring-shaped sensors. The load-side outgoing cables are inserted through the openings of these sensors behind the miniature circuit breakers. It is therefore not necessary to cut or separate the cables – installation is easy. The 7KT PAC1200 Siemens multi-channel current measuring system is comprised of: 1. Data manager as a fully integrated smart meter with 3-phase energy measurement for effective and reactive power supports up to 96 sensors for single-phase measurement. 2. Integrated Web server for operating and configuring via an intuitive Web interface using a PC, notebook or even tablet/smartphone (iOS and Android app available). 3. Sensor bars in versions with 3, 6, 9 and 12 sensors. 4. Sensors (40 A / 63 A) for recording current.
